Stratasys Fortus 400mc FDM 3D Printer PartSnap 3D Printing builds its highest durability parts and prototypes using a series of Stratasys FDM 3D printers including a Fortus 400mc and several Dimension uPrint SE Plus systems.

The FDM process is ideally suited for production parts.  PartSnap can serve as your Direct Digial Manufacturing (DDM) partner to eliminate your need to stock inventory.  Materials options include the FDA-approved PC-ISO for medical applications and FAA-approved ULTEM for end-use aerospace or automotive parts.

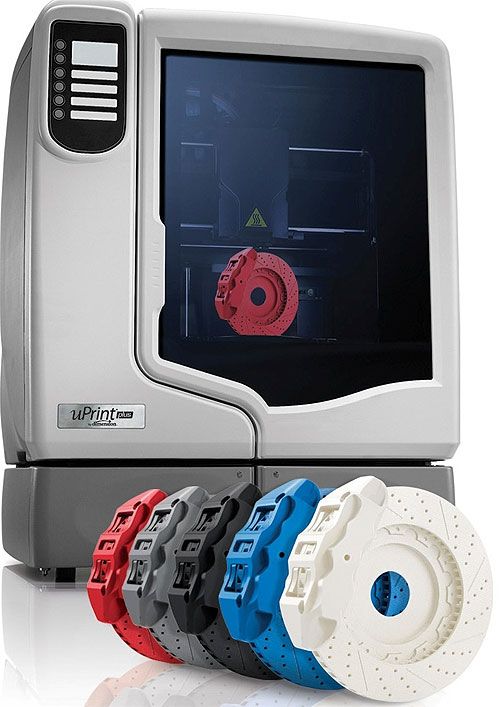

Stratasys Dimension uPrint ABS FDM 3D Printer

Strengths:

  • Large part capability
  • Tough thermoplastic parts
  • Suitable for production, end-use parts
  • FDA approved materials options
  • FAA approved material option

Weaknesses:

  • Lower resolution than PolyJet
  • Lower z-axis strength than x & y axes

FDM Typical Printer Specifications:

  • Maximum envelope (bounding box)
    – Large Format 16” x 14” x 16” (406mm x 356mm x 406mm)
    – Small Format 8″ x 8″ x 6″ (203mm x 203mm x 152mm)
  • Layer size: 0.010in (0.25mm)
  • Minimum feature size: 0.040in (1.0mm)
  • Minimum clearance or gap between features: 0.030in (0.76mm)
  • Typical Part Tolerances: +/- 0.005″ or 0.002″/”, whichever is greater
FDM Material Options

  • ABS
    • Black
    • White
    • Gray
    • Red
    • Blue
    • Yellow
    • Olive Green
  • PC-ISO
    • White
    • Clear
  • ULTEM
    • Tan
    • Black

See FDM Material Properties

Need high resolution parts?  Check out PolyJet 3D Printing material properties.

Ready to order?  Get Instant Pricing on 3D Printing and Buy Online
